Description

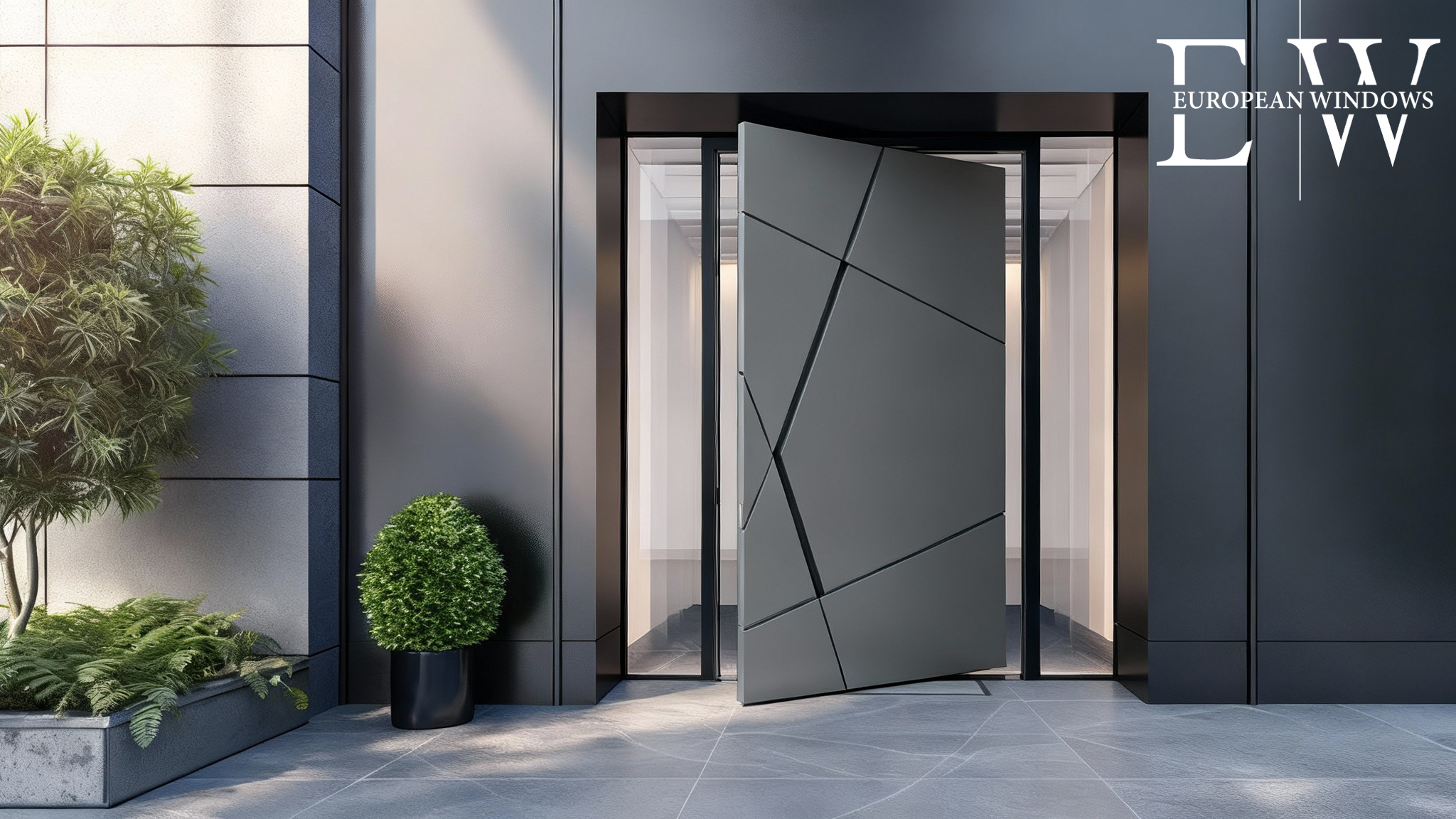

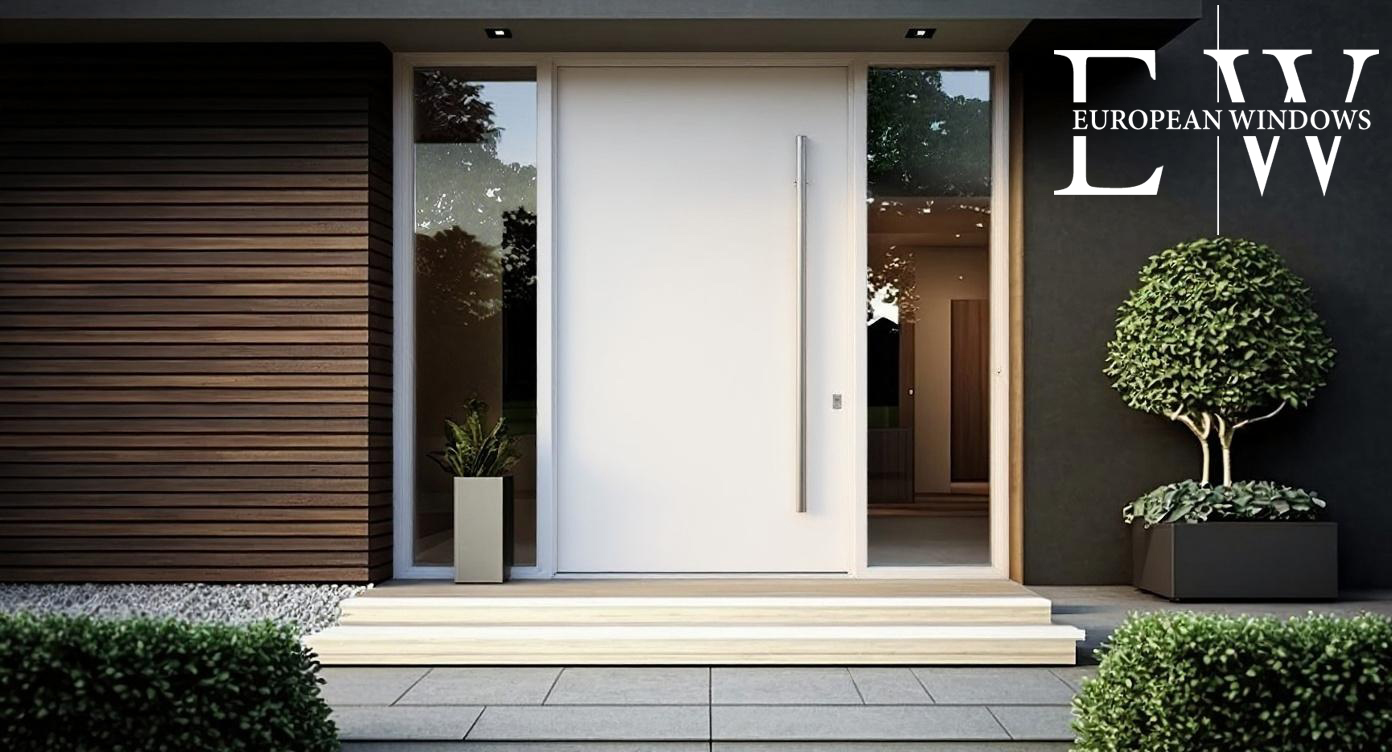

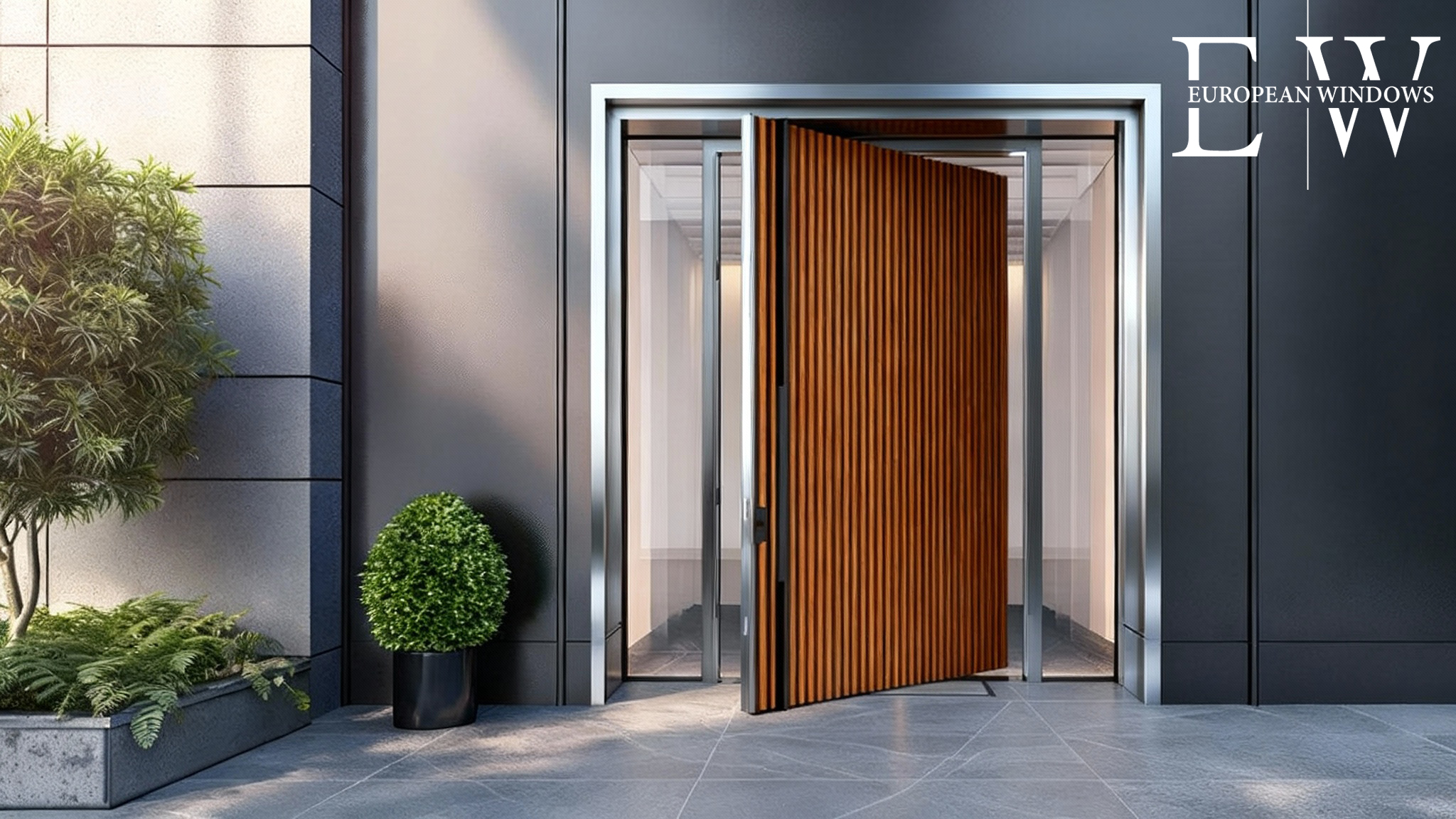

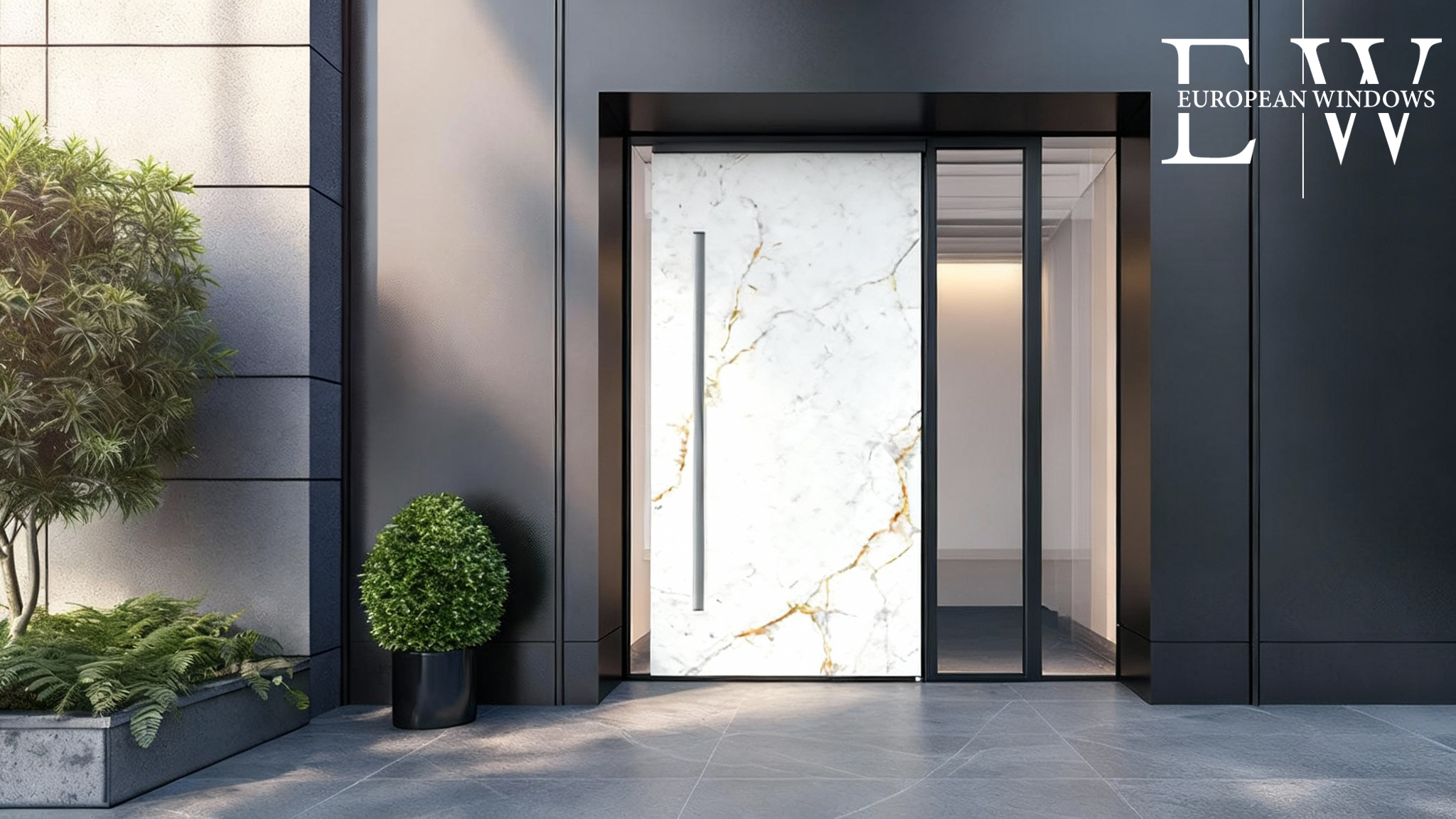

MB-86N PIVOT DOOR
Technical specification
Frame depth 77 mm
Leaf depth 77 mm
Infill panel thickness 77 mm
Maximum leaf size 1950 × 3400 mm
Maximum leaf weight 500 kg
Performance
Air permeability class 4, EN 12207
Watertightness class 4A (150 Pa), EN 12208
Windload resistance class C3 (1200 Pa), EN 12210
Operating forces class 1, EN 12217
Resistance to torsion class 4, EN 1192
Resistance to vertical load class 4, EN 1192
Thermal insulation UD from 0,65 W/(m²K)
UD from 0,65 W/(m2K)
